Routing Overdue Summary
Jadestone only. Report code routing_01_summary, added by INA27-296 (Done). Opens the routing module with show=report&print=due_summary; routing_handler_print.php includes routing_handler_print_due_summary.php, 321 lines, on $pdo. One row per PIC and discipline with two counts: routings that are overdue, and routings that fall due today. It is the recap of Routing Overdue, which lists every routing; that report is unchanged.
How this page was verified

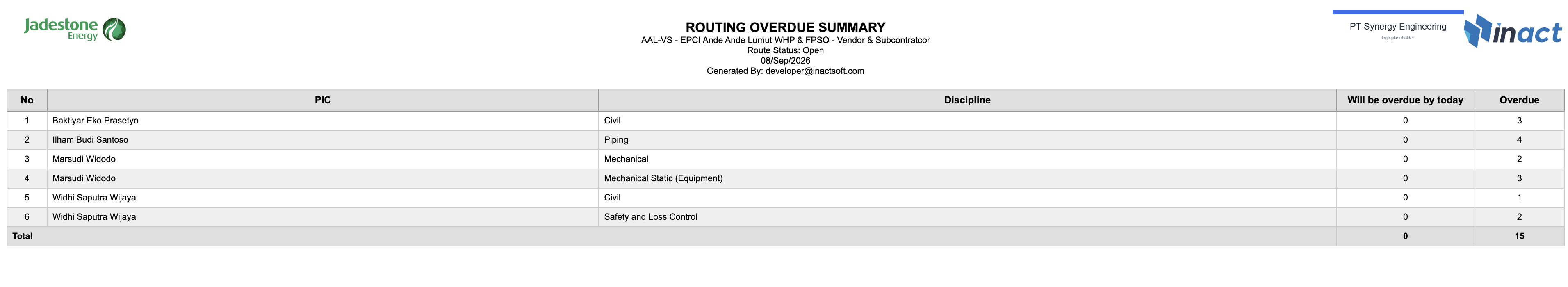

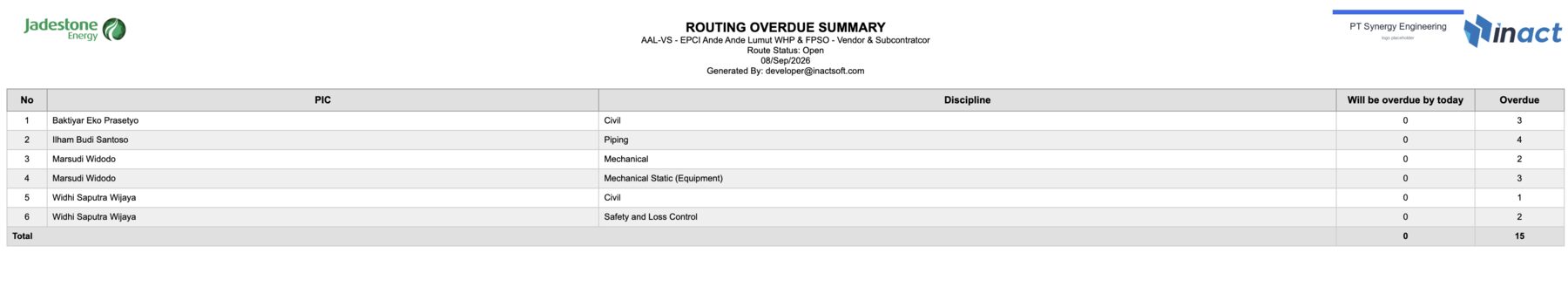

Traced in ina-jadestone on 2026-09-08. Screenshots from inact-jadestone.eris.place on the production snapshot of 2026-09-07, project AAL-VS, Route Status Open. Master and the other forks do not have this report.

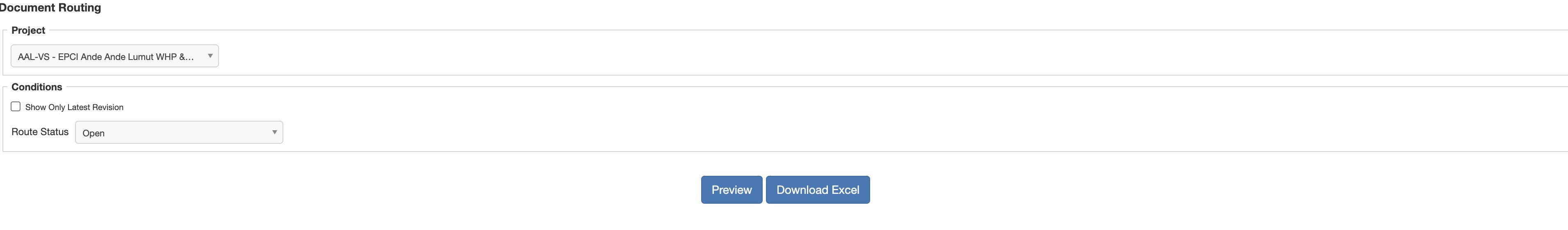

The filter form
view=custom renders routing_print_due_summary_custom.htm. No template, no record grouping, no column picker: the output has fixed columns.
| Control | Field | Effect |
|---|---|---|
| Project | project | the user's projects, from getProjectPersonByResource() |
| Show Only Latest Revision | only_latest_rev | keeps one routing per document number: the one with the highest rout_id among the main files (rout_type = 1) |
| Route Status | rout_status | open (default), close, or all: ts_routing.rout_status |
| Preview, Download Excel | due_summary_download_as | HTML in a new tab, or an .xlsx built inline with PhpSpreadsheet; the routing module's excel/export_excel.php is not used |
The query
One query over ts_routing joined to ts_map_routing_to, ts_resource and ts_org_person, for the project's sent routings (rout_have_send = 1) and only the recipient rows whose Action Indicated is Responsible (rout_indicate = 16) or Approval (9). Draft routings are never counted, even when their recipients already have due dates. The query also returns rout_day, the due date minus today:
| Driver | rout_day |
|---|---|
| MySQL | DATEDIFF(rt.rout_due_date, NOW()) |
| PostgreSQL | rt.rout_due_date - CURRENT_DATE |
| SQL Server | DATEDIFF(DAY, GETDATE(), rt.rout_due_date) |
All three read the same way: negative is late, zero is due today, positive is still in time. Then three lookups for the discipline: the project's disciplines, the MDR (dm_docmaster_number to dm_discipline_identifier), and the routing files (ts_map_routing_file) of the routings found.
The rows
PIC
One PIC per routing. The first recipient row with Responsible wins; a routing without a Responsible falls back to its first Approval row by map_id. A routing with neither is not counted for anyone. The label is person_name from ts_org_person, or resource_name (No user) when the resource has no person behind it.
Discipline
The document's discipline name, looked up in this order from the routing's first file (rout_type, then map_id): the MDR row's dm_discipline_identifier mapped to docdisc_name; else the file's docdisc_id; else the raw MDR code; else -.
The two counts
A routing is counted only while the PIC still has it pending: rout_status_resp = 'N' on that recipient row. Then:
| Column | Rule |
|---|---|
| Overdue | rout_day < 0 |
| Will be overdue by today | rout_day = 0 |
| not counted | rout_day > 0, still in time |
Rows are keyed by PIC and discipline, sorted by PIC then discipline (case-insensitive), and the Total row sums both columns. Because the unit is a routing, a document with two open routings counts twice, once per routing, and the same PIC can appear on several discipline rows.
Known issues
- Counts routings, not documents. The ticket asked for distinct documents; the code counts one PIC row per
rout_id, which is distinct per routing. Two routings of the same document both count. - Route Status Close still applies the pending gate. A closed routing rarely has a recipient with
rout_status_resp = 'N', socloseusually prints an empty table. - The discipline fallback prints
-for a document outside the MDR whose routing file has nodocdisc_id.
Related
- Routing Overdue: the per-routing list this one summarises, including the Jadestone-only Issued Status column (INA27-299).
- DMS reports.
