Documents Library report

Report code: documents. Opens the documents module with cmd=print_costume, the customise form, whose Preview submits print=print_all to the same module. There is no separate handler: the report is the library grid query printed as a table, rendered by documents_print_all.htm, with one grouping header per root folder. The grid and the report always agree, because they run the same SQL.

How this page was verified

Traced in master on 2026-09-06; the print path is the same in the big five and KTP apart from the columns each fork adds to the grid. Screenshots from inact-ktp.eris.place, project SNS.

The customise form

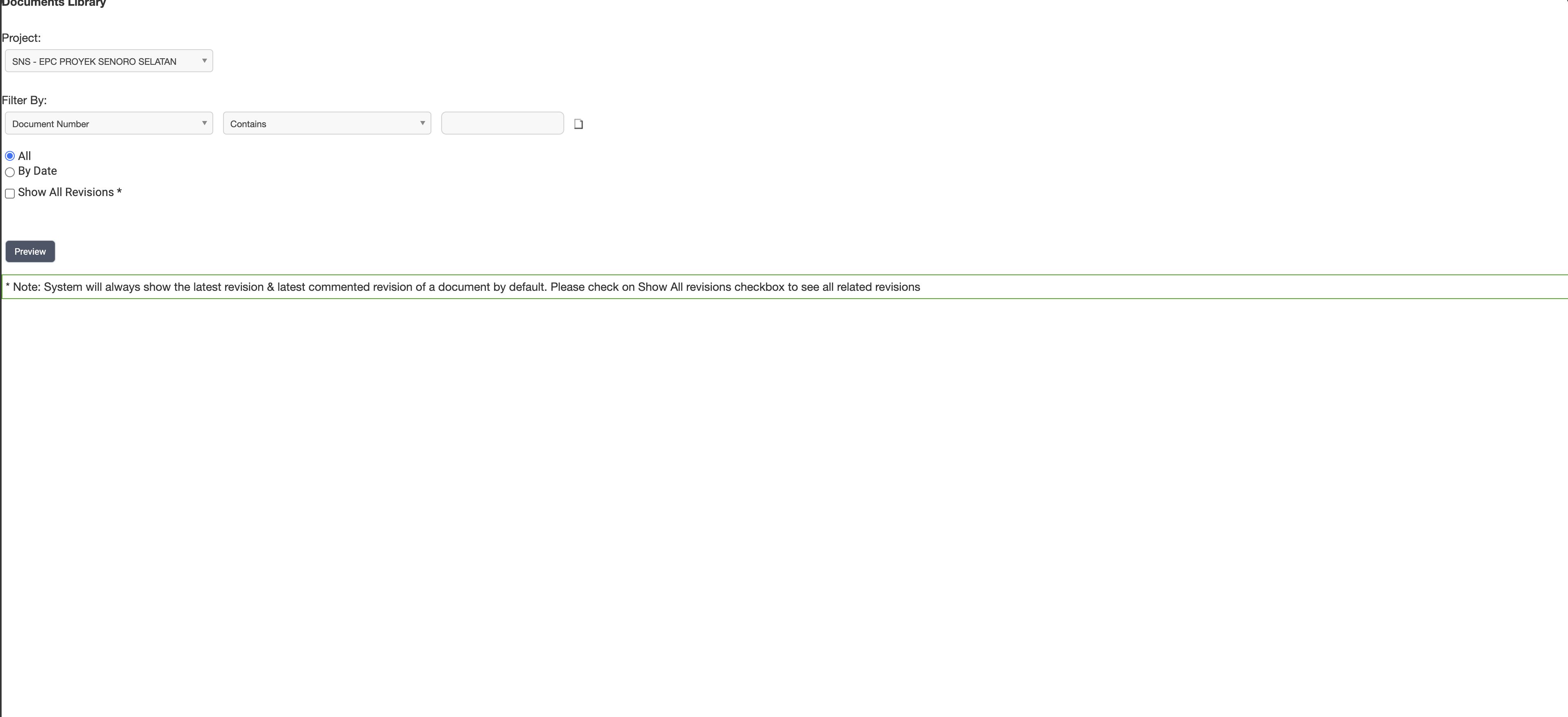

Documents Library report, the customise form · click to enlarge

Control	Field	Effect
Project	project
Filter By	field[], operator[], what[]	grid columns by their SQL alias (d.doc_number, d.issued_code, d.doc_res_id, d.library_code2, ...); operators contains, start with, not contain, equals, not equal, greater than, less than
All / By Date	print_type	all prints "As Of today"; perday prints "As of <from> to <to>" and takes the range from the date filter
Show All Revisions	print_all_revision	one row per library row instead of one per document
Without comment sheet	print_without_commentsheet	adds doc_rev NOT LIKE '%_C'
Only vendor / subcontractor	print_only_vendor_subcontractor, print_vendor_subc_opt	restricts to folders whose library_code starts with 13 (vendor), 14 (subcontractor) or either
Sort	sortby[], sorttype[]	the Preview sends doc_send_received desc by default

The note under the form is the rule that matters: by default the report shows the latest revision and the latest commented revision of each document.

The query

The grid query in documents.php: ts_map_documents_library map joined to ts_doc_library and ts_documents, for the project, with map.stat_id = 0 (not removed from the folder), the folder access list of the user's group (admins skip it), the filter rows, and:

• default: one row per doc_number, the first in doc_send_received DESC, doc_rev DESC order. MySQL does that with GROUP BY d.doc_no, doc_number over an ordered subquery; SQL Server and PostgreSQL with ROW_NUMBER() OVER (PARTITION BY d.doc_number ORDER BY d.doc_due_date DESC, d.doc_send_received DESC ...). As in the MDR Report Summary, the two orderings are not the same.
• Show All Revisions: GROUP BY d.doc_no, every row.

The rows are then walked in document order. The print loop applies one more rule when Show All Revisions is off: after the first row of a document, a further row of the same document is printed only if its revision starts with the same character as the previous printed one. That is how B and B_C (the comment sheet) print together while A is dropped. Rows are grouped under a header per root folder (getRootParent(library_code), "None" when the document has no folder).

The columns

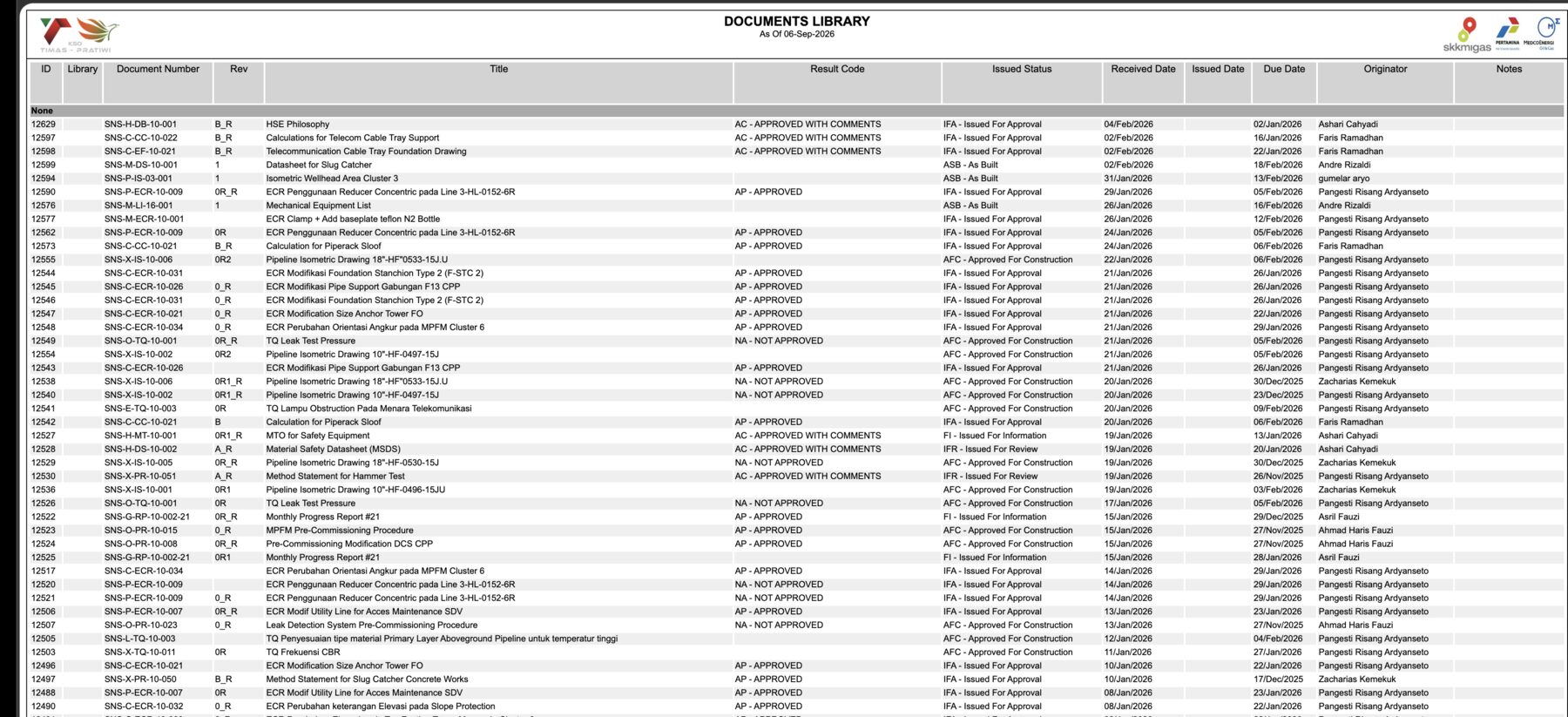

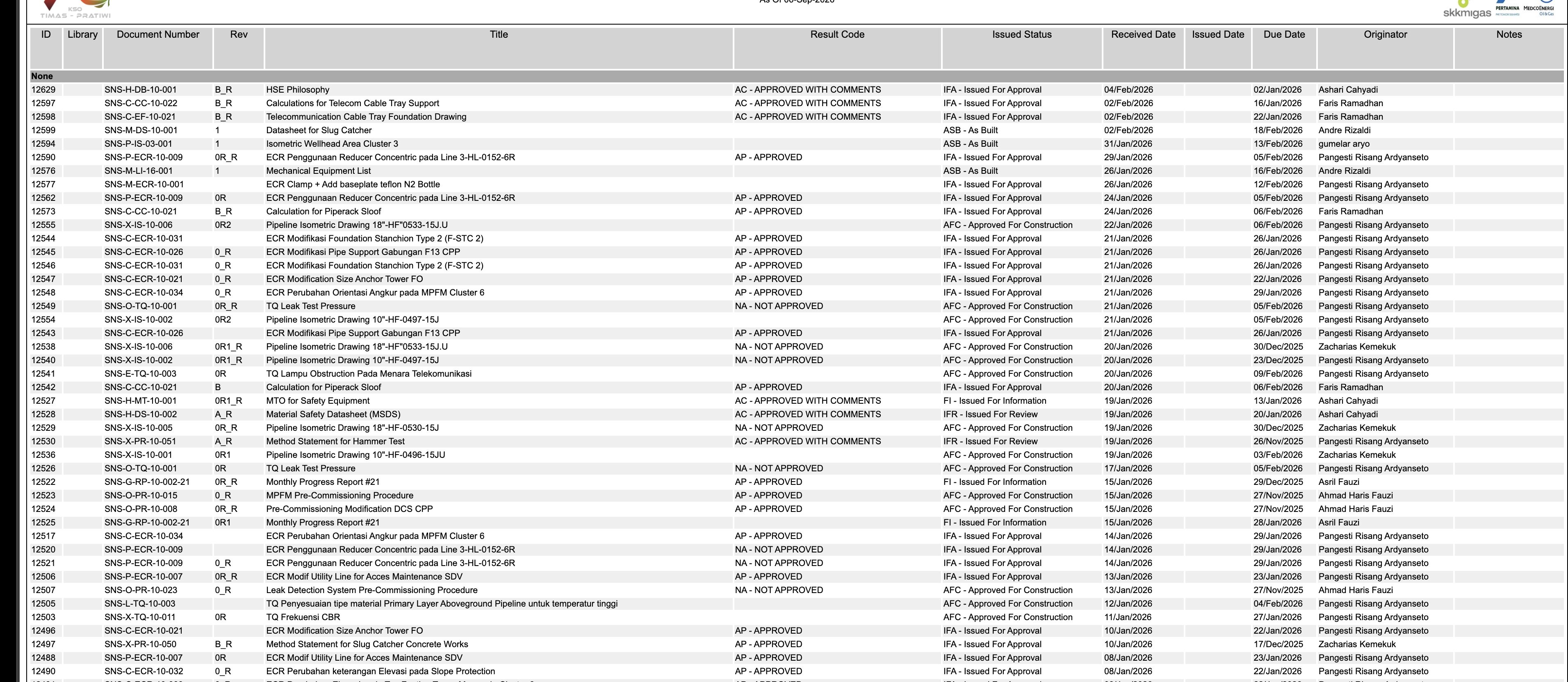

Documents Library report, HTML preview on the KTP snapshot · click to enlarge

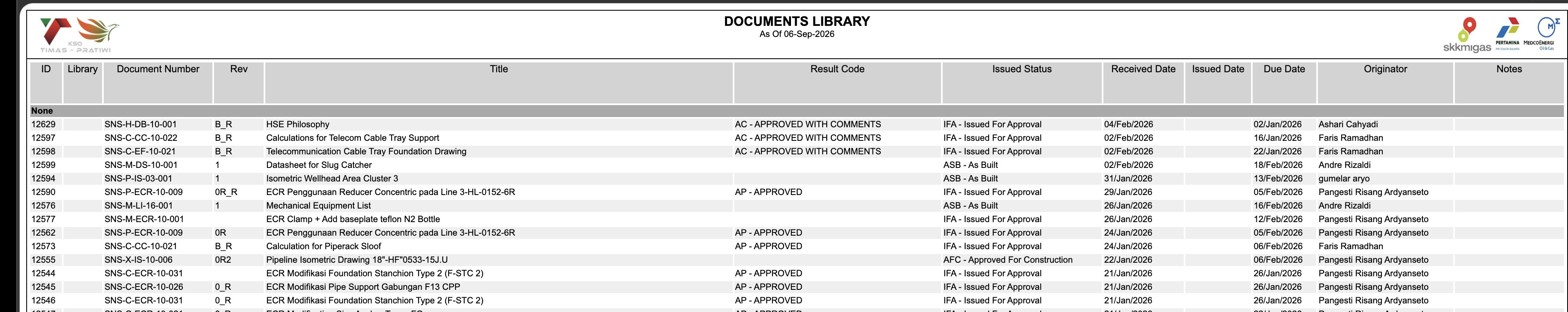

The header, the ‘None’ folder group and the first rows, one document per row · click to enlarge

From documents_print_all.htm in master: ID (doc_no), Library (library_desc), Document Number, Rev, Title, Result Code (doc_res_id), Issued Status (issued_code), Submission Date (doc_send_received), Issued Date (doc_issued_date), Due Date, Originator (doc_originator_person_id), Lead Reviewer, Notes, and Expiration Date when enable_doclib_retention is on. KTP's template labels the date "Received Date" and has no Lead Reviewer column, as the screenshot shows. The header carries the company from inact_report_title_company and "Documents: All, As Of <date>" or the By Date range.

The Print button on the grid itself (grid=1, documents_print_grid.inc.php) is a different thing: it prints the grid's current XML with the columns the user has ticked, no grouping, no revision rule.

Known issues

• The revision rule is by first character. Revisions 1 and 10 print together; B and B1 too. A document with revisions A, B prints B only, which is intended, but B, A_C prints B only and drops the comment sheet of the older revision.
• Vendor and subcontractor folders are recognised by code prefix 13 and 14, a convention from the first projects that not every instance follows.
• By Date reads its range from the date filter row; with no date row the header prints an empty range.

Instance differences

Checked on 2026-09-06.

Instance	Difference
All big five, plus Timas and KTP	The print path is the same (Prima Energy's documents_print_grid.inc.php is byte-identical to master's); the difference is in get_doc_column(), the grid column list each fork extends (system_code, well_site_code, function_code, doc_classification, ...). The report's columns are fixed by the template and do not follow the grid.

Related

• Document Library: the module.
• DMS reports.
