Document Library

Module: documents. The register of documents a project holds, shown as a folder tree with a document grid. Uploaded and published files land here, users download from here, and from here a document can be sent by email or put on a routing.

How this page was verified

Written from master on 2026-09-06 and compared with the big five the same day. The screen section was rewritten on 2026-09-07 with the screens opened on inact-ktp.eris.place (KTP production snapshot, project VDRL, user Pangesti Risang Ardyanseto).

What it is

The Document Library has three layers:

Layer	Table	Holds
Folders	ts_doc_library	library_id, library_code, library_desc, library_parent, contract_ref. A tree keyed by library_parent. ts_map_doc_lib_project says which folders belong to which project.
Documents	ts_documents, placed by ts_map_documents_library	The register row (number, revision, title, originator, issued code, dates, result) and its folder placements (doc_no, library_code, stat_id). One document can sit in several folders.
Files	ts_file_explorer, linked by ts_map_doc_file	The physical file (exp_file_name, size, type, originator, folder, upload date, has_downloaded, is_exists) and the link to the document.

The same three tables are what Upload writes when it registers a PDF and what Sign Off writes when it publishes the reviewed _R copy. The Document Library is the reader of that data, plus the manual path in.

The screen

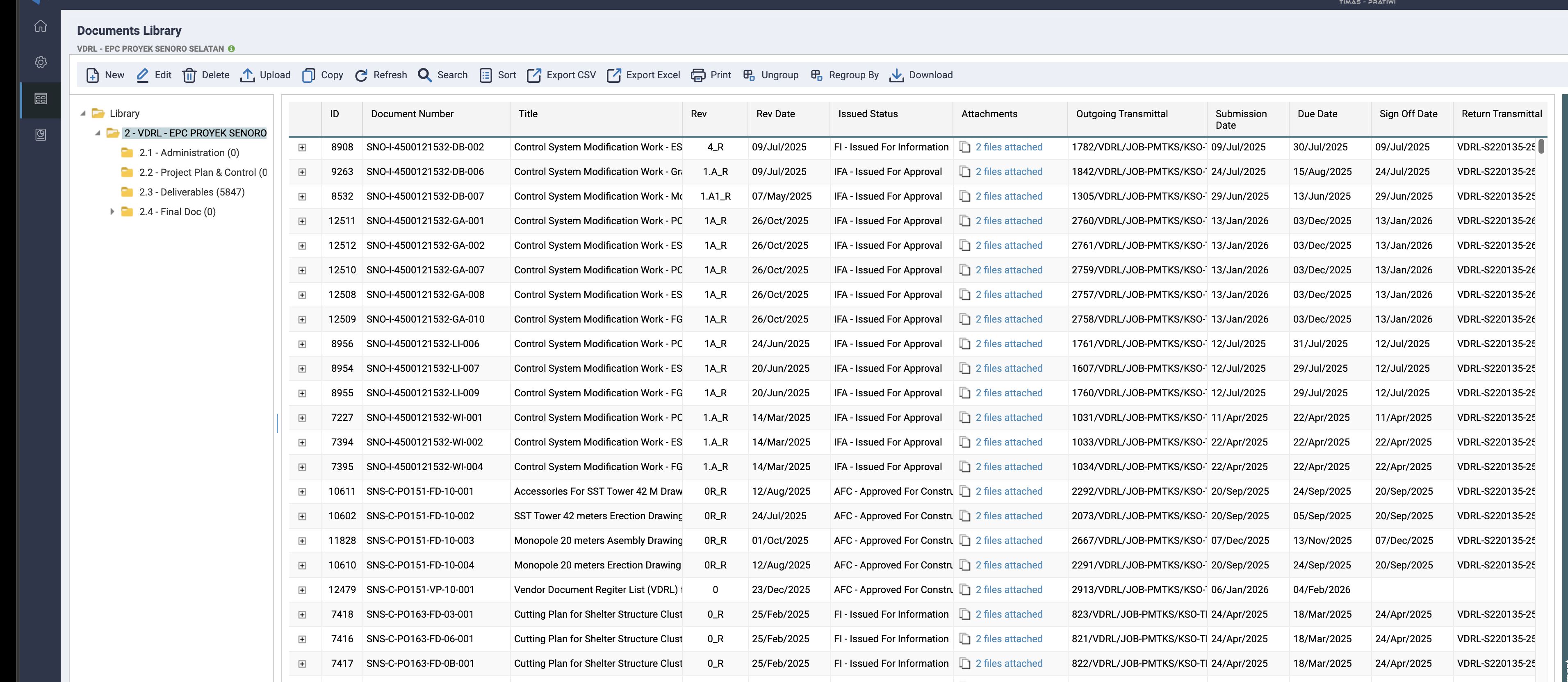

Documents Library on the KTP snapshot: the folder tree, the toolbar, the grid of the selected folder and the collapsed Detail of Document panel on the right · click to enlarge

The page is documents.php with the template documents_browse.htm, laid out in three parts:

1. The folder tree on the left (cmd=groupby, built by documents_groupby.inc.php from ts_doc_library joined to the project's folders). The root is the project; KTP's VDRL project has Administration, Project Plan & Control, Deliverables and Final Doc under it, with the document count per folder. Selecting a folder filters the grid on map.library_code.
2. The grid, one row per document with its latest revision, in the folder selected. Every row has a + that opens the revision sub-grid (cmd=subgrid): the same columns for every revision of that document number, so 4_R, 4, 3_R and 3 sit under one row.
3. Detail of Document, a panel collapsed to the right edge. Opened with its arrow and fed by a click on a row (cmd=docdetail, document_details.php): the files with their size and a download link, Result Code, Uploaded By, Library Code, and the audit columns.

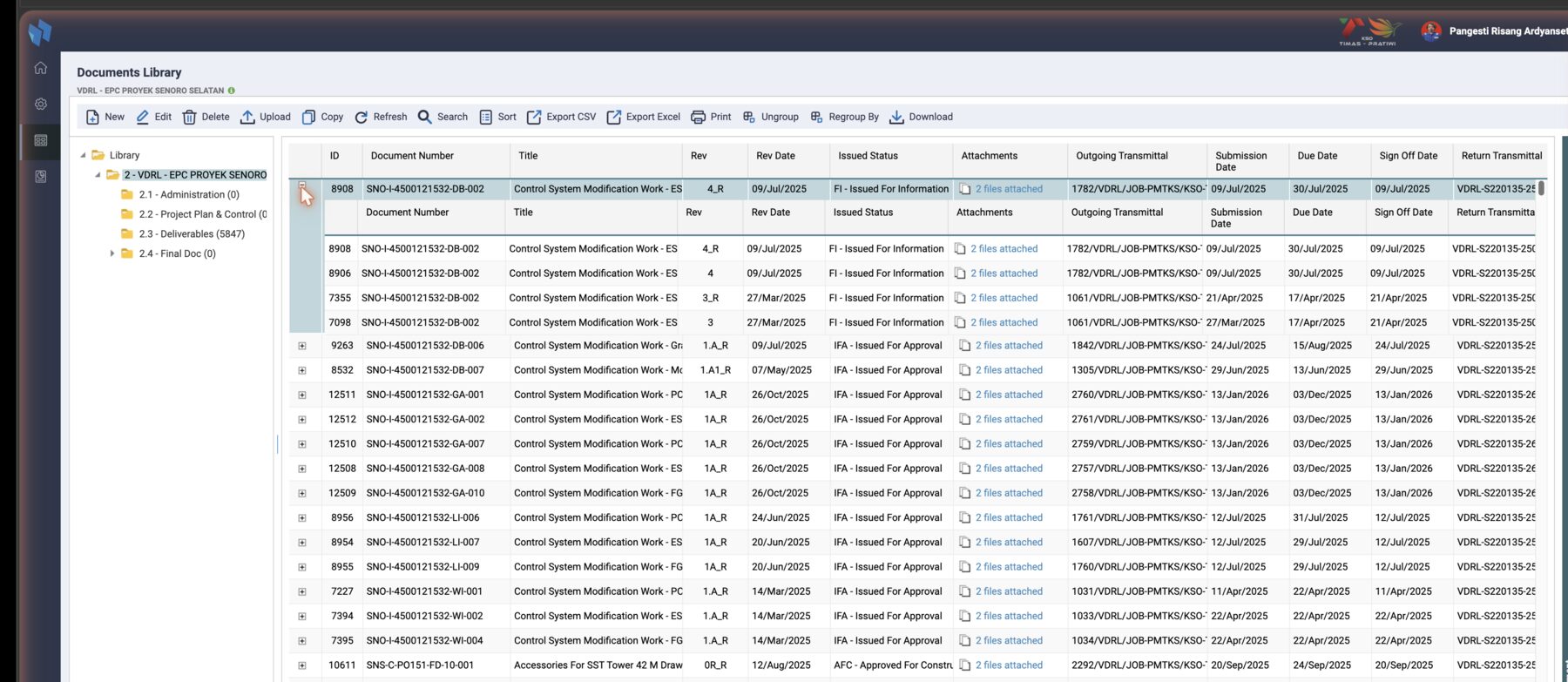

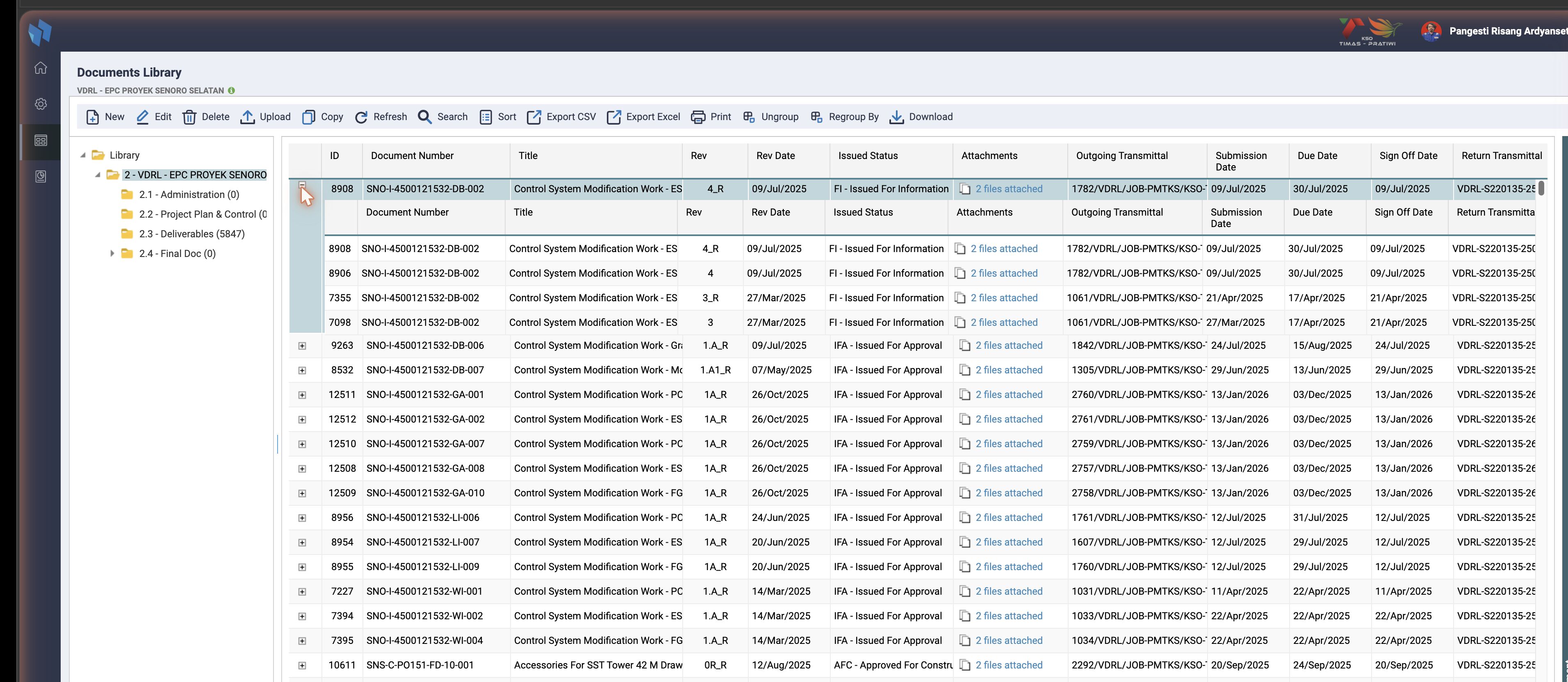

The revision sub-grid under one document: revisions 4_R, 4, 3_R and 3 with their transmittals and dates · click to enlarge

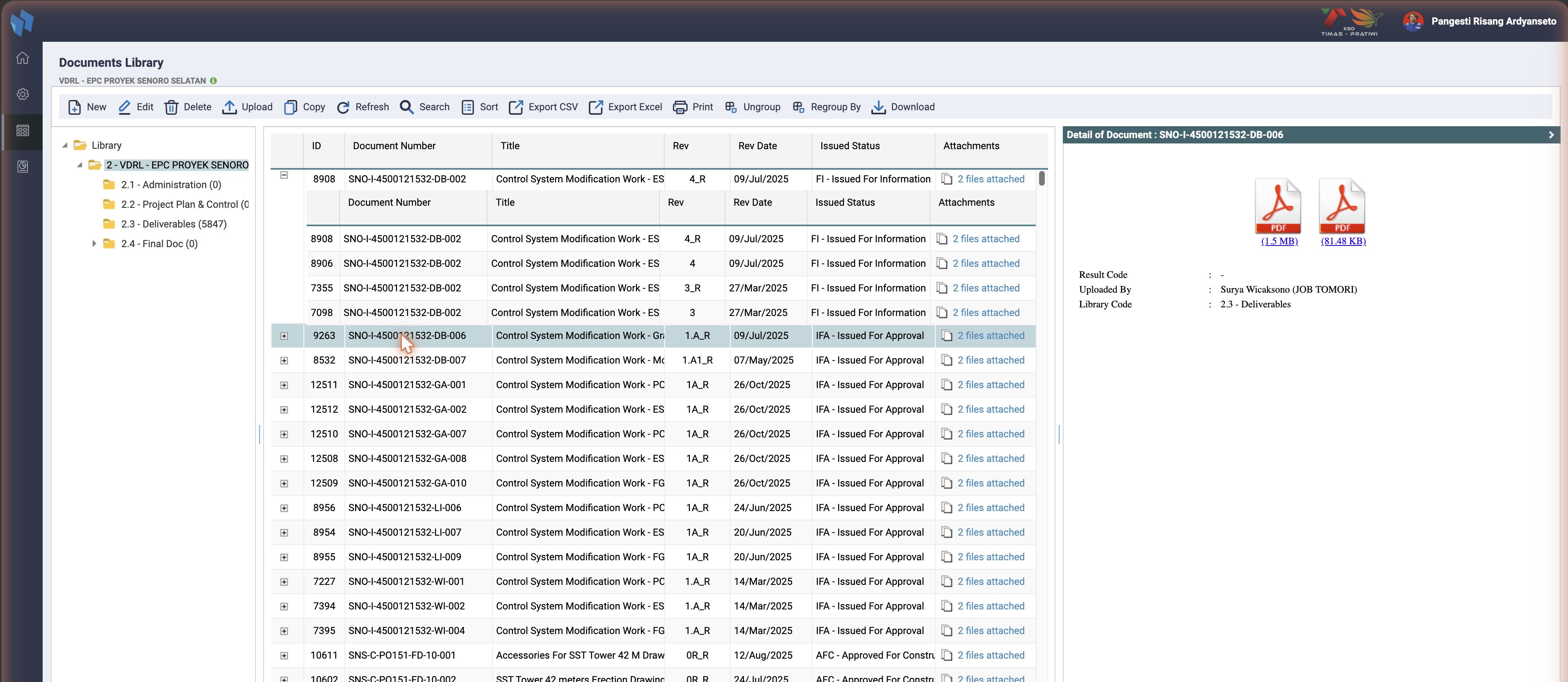

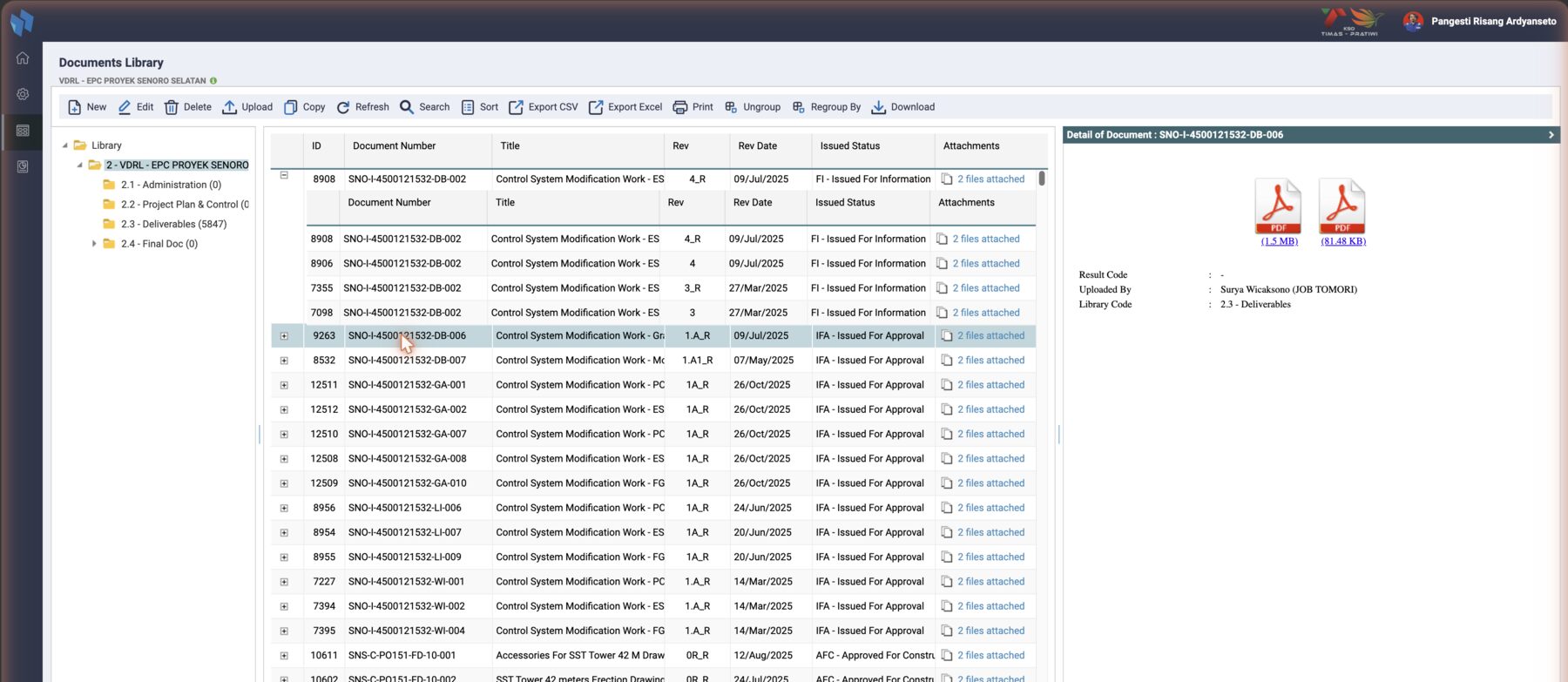

Detail of Document after a click on a row: the files, the return code, who uploaded it and the folder · click to enlarge

Columns

The grid columns come from get_doc_column() in documents.inc.php, and every fork extends that list. Master shows ID, Doc Type, Document Number, Title, Rev, Rev Date, VDR Rev, Issued Status, Attachments, Incoming Transmittal, Submission Date, Due Date, Sign Off Date, Returned Date, Expiration Date, Outgoing Transmittal, Return Code, Next Expected Submission, Project Code, Area, Well Site, Originator (Company and Person), Discipline, Document Type, Document Category, System Code, Drawing Category, Contract / PO Number, Document Classification, Function Code, Author, Document Index, Remarks, MDR / Non-MDR and Rev. Date. The Attachments cell is a link that lists the files.

Toolbar

Five buttons are added by documents_header.inc.php according to the user's documents privileges; the rest are fixed in the template.

Button	Privilege	What it does
New	add	the Add Document form (act=add): register row, folder placements, system mappings (ts_map_doc_system). With auto numbering on, the form offers a generated number
Edit	edit	act=edit rewrites the register row and re-creates the folder placements and system mappings
Delete	delete	act=deletedata removes the register rows, their file links, folder placements and system mappings
Upload	add	the Upload Document dialog: attach files to the selected document through the multi-file uploader (document_multiupload_upload.php). This is the library's own upload; the MDR upload that starts a routing is under Master Doc. Register
Copy	add	the Add form pre-filled from the selected document
Refresh, Search, Sort	any	reload; the Search Data dialog (basic and advanced, like the MDR one); a sort dialog on the grid columns
Export CSV, Export Excel	any	cmd=exportCSV, exportXLS, the grid with its current filter
Print	any	the customise form of the Documents Library report (cmd=print_costume)
Ungroup, Regroup By	any	cmd=regroup: group the grid by a column, with a sort column and order
Download	any	batch download: the selected documents' files as one zip (cmd=batchdownload)
Send	any	in the row menu: the send-by-email dialog, see below

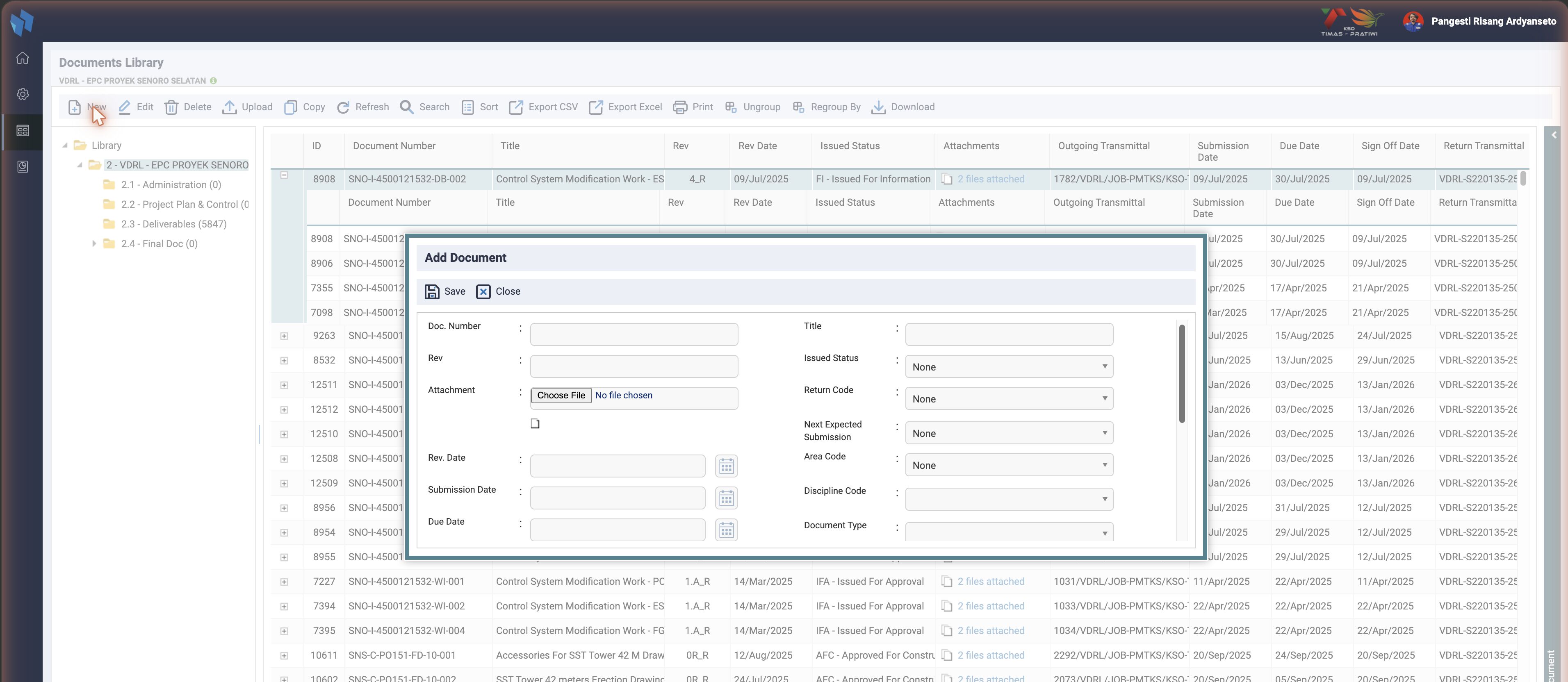

Add Document: number, revision, attachment, dates and transmittal numbers on the left; title, issued status, return code, next expected submission, area, discipline and document type on the right · click to enlarge

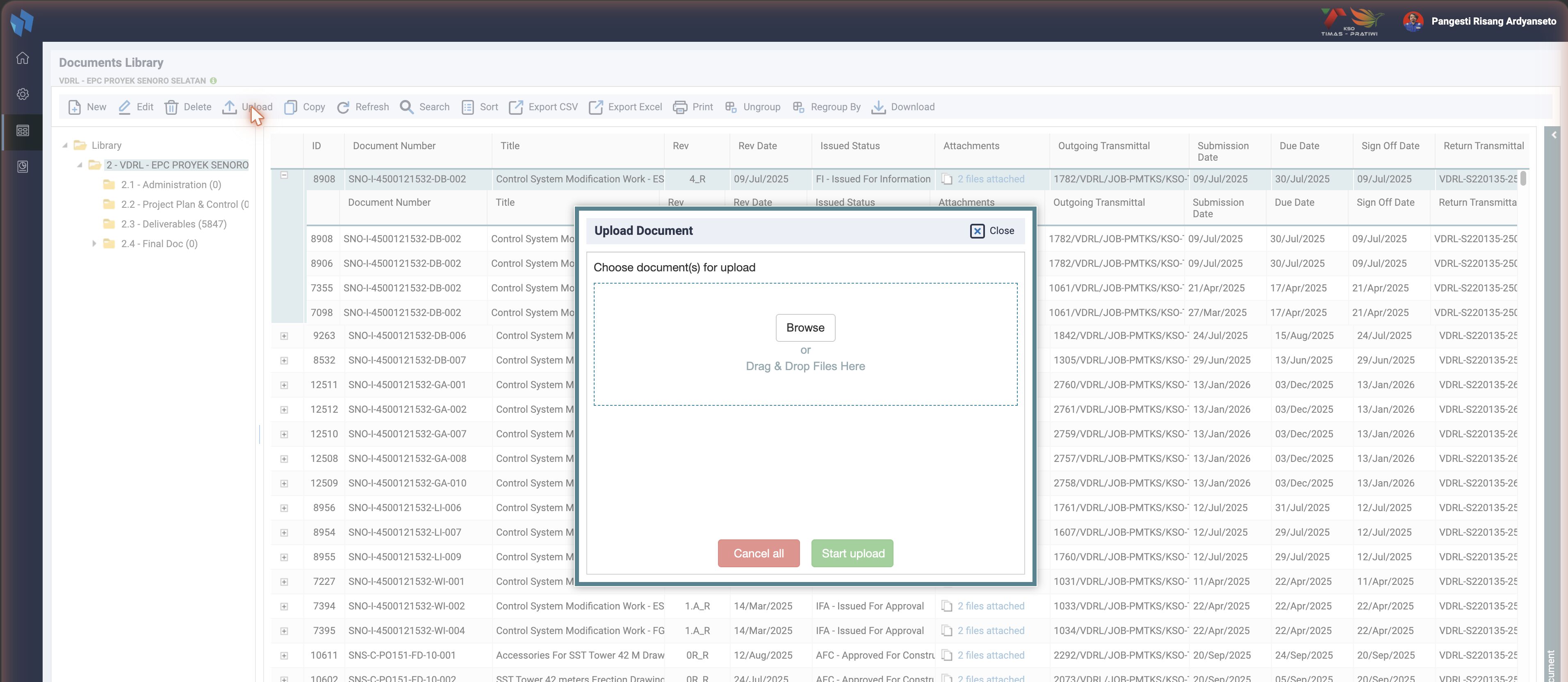

Upload Document: files for the selected document, then Start upload · click to enlarge

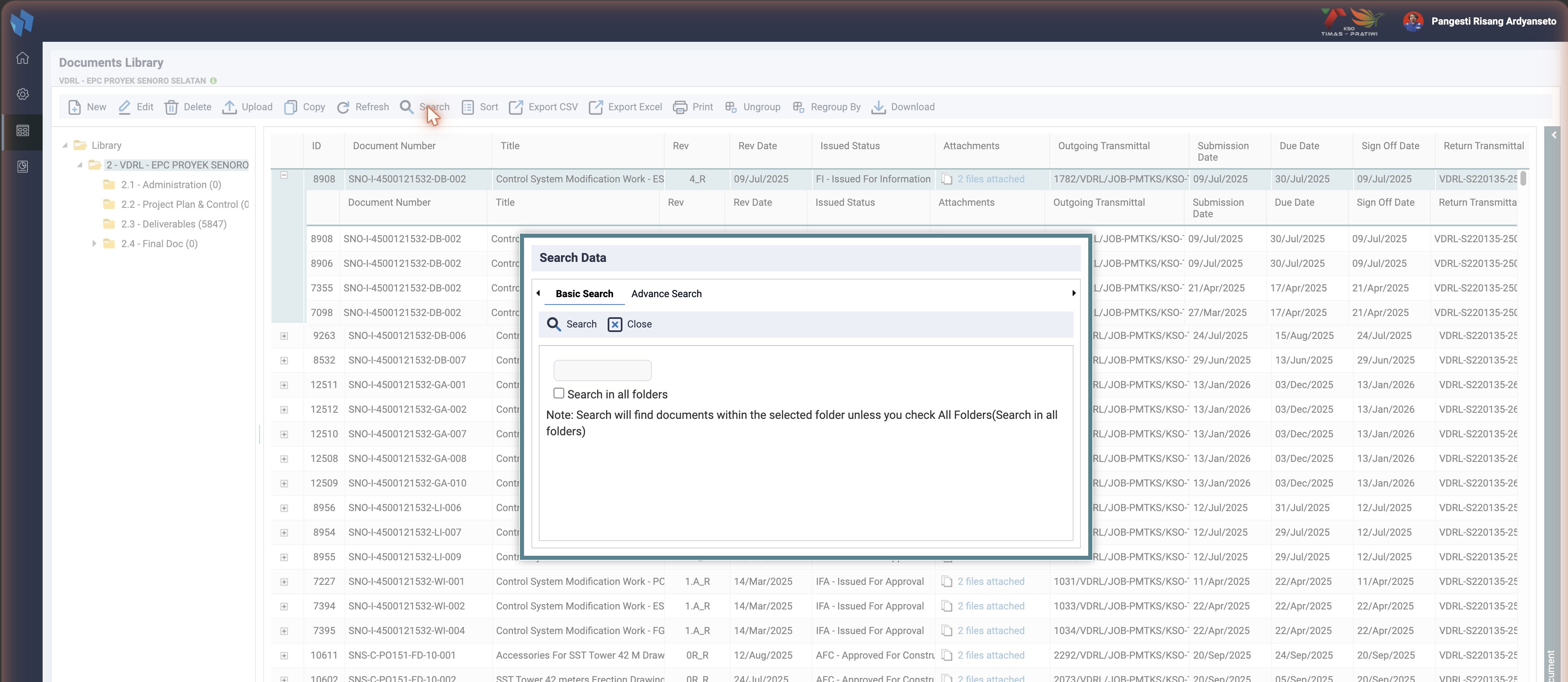

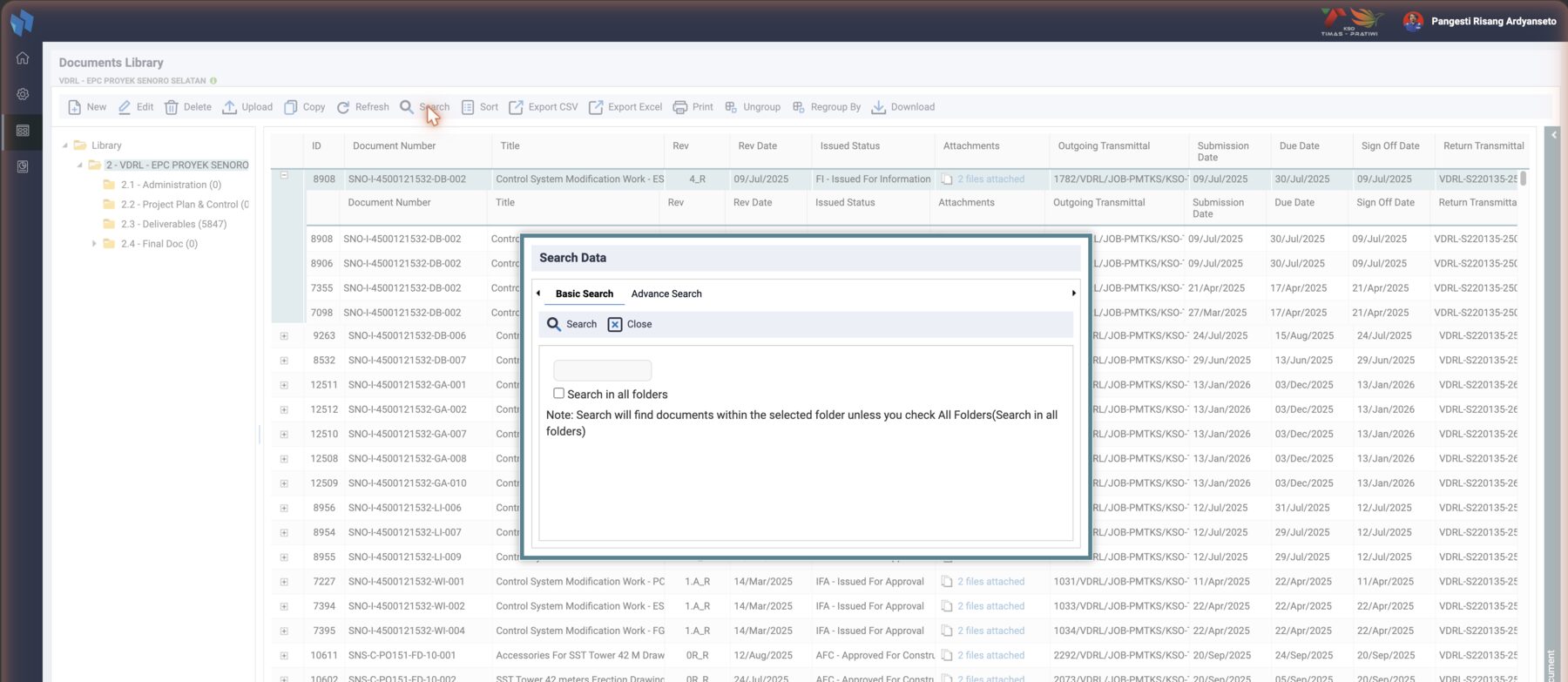

Search Data: basic search on number and title, or the advanced tab with field, operator and value · click to enlarge

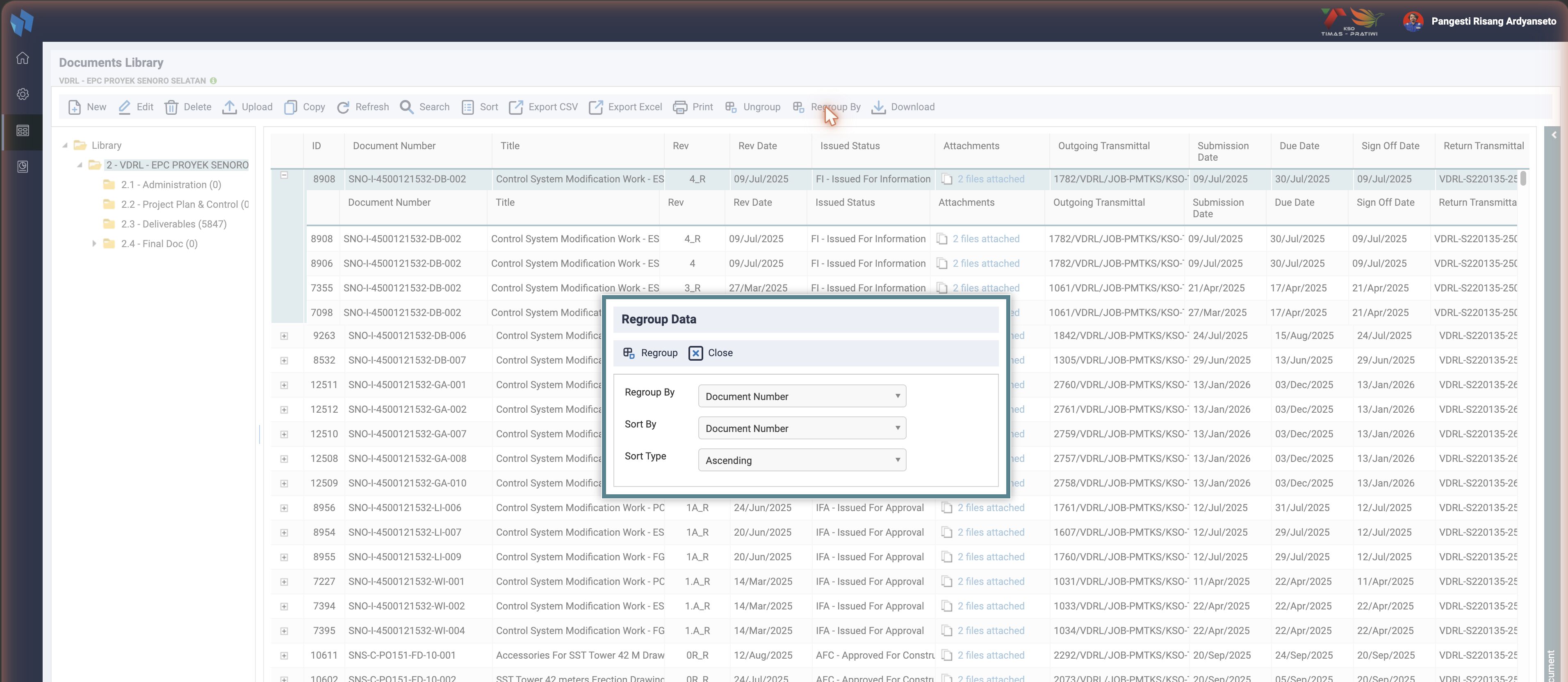

Regroup Data: the grouping column, the sort column and the order · click to enlarge

Per-row actions in the row menu: Routing detail (cmd=routdetail), Route this document (cmd=routing_this_doc, opens the routing form for a library document that did not come through the MDR), View attachments (cmd=viewattach), and the print reports listed below. The menu also offers Unpublish.

Folder access

Two mechanisms limit which folders a user sees:

• ts_doc_library_priv: resource_group_id × library_id. When the user's resource group has rows here, documents.php builds $filterFolderAccess so both the tree and the grid only show those folders. No rows means no restriction.
• library_folder_access_default (config, default 1): when a folder is created, access rows are added for the project's resource groups automatically, so a new folder is not invisible by accident. See inweb_config.

ts_library_index_access (person_id × library_index_id × project_id) is a third, per-person table used by the archive and index screens under member/.

Download and watermark

Every file link is main.php?page=member&cmd=download&tp=pdf&md=document&fl=<file>&docno=<doc>. member.php hands that to download/watermark.php. If the project's watermark setting is active (watermark_active) and the type is PDF, the file is stamped through libraries/fpdf/inact_watermarking_pdf.php before it is streamed; otherwise it is streamed as is. Vendor downloads through a shared link are logged to ts_downloadfile_link.

This is the download watermark, configured under DMS Reference. It is not the enable_watermark flag, which belonged to the removed SPRD / VOID stamping at upload.

Send by email

The Send button opens documents_send_docemail.php. The user picks recipients from the project contacts (ts_map_email_sender, with a recipient type of to / cc), writes a subject and body (ts_map_email_content), and can add more documents as attachments (ts_map_email_more_attach). Two delivery modes, each behind a config flag:

Mode	Flag	What the mail carries
Attachment	enable_doclib_sendby_attachment	the files themselves
Link	enable_doclib_sendby_link	direct download URLs built by getPdfLink(), the same cmd=download links as above

The dialog and its handlers run on $pdo and send through PHP mail() in documents_send_attachment.inc.php and documents_send_docprjcontact.php, not through the ts_email queue that routing notifications use.

The older link path is dead in four forks

act=sendemail in document_handler_post.php is the legacy "send a download link" action. It writes ts_download_link (a random id, the recipient's hashed email, an expiry in hours) and mails the link. It runs on iw_mysql_query(), which throws in master, Jadestone, Medco and Timas, so only JOTRE can still execute it. The Send dialog does not use it.

Unpublish

The context-menu Unpublish posts act=unpublish. It is meant to take a routing-published document back: set ts_documents.docstat_id=2, ts_map_documents_library.stat_id=2, and clear rout_ispublished on ts_map_routing_file.

Dead in master, Jadestone, Medco and Timas

The whole block runs on iw_mysql_query() and mysqli_*. Clicking Unpublish in those forks ends in a fatal error. It works in JOTRE only, where the legacy helper still runs. Checked 2026-09-06.

Print reports

cmd=print_<name> renders a report template over the current filter. Each has its own documents_print_<name>.inc.php:

Command	Report
print_costume	the customisable "Documents Library" listing, which is also the DMS report in the Reporting menu
print_docstatus	document status
print_revstatus	revision status
print_outstanding	outstanding documents
print_outstandpublish	outstanding for publish
print_ifcupdates	IFC updates
print_vendordocprogress, print_vendoroverdue	vendor document progress and overdue
printgrid	the grid as shown

documents_print_cpeccproc.inc.php and documents_print_subdocprogress.inc.php exist but have no cmd= route in master.

Retention

With enable_doclib_retention = 1 the grid and the print-all report gain an Expiration Date column (ts_documents.doc_expired_date). Per-project settings live in ts_doc_retention_settings: who to notify (resources, author, originator, extra emails), when, and which email template. The cron inact_doclib_retention.php reads those settings and the documents with an expiry date and queues the notices. See Cron jobs.

Auto document numbering

With enable_auto_doc_numbering = 1 the New-document form can generate the document number. Three tables, added to master in November 2024 and ported to Prima Energy in September 2026:

Table	Holds
ts_doc_auto_numbering_settings	per project and classification: settings_data (the structure), separator, incremental digit count, sequence start
ts_doc_auto_numbering_root	which library index a project numbers from
ts_doc_auto_numbering_counter	the last counter per numbering structure

How the pieces fit:

1. Settings > DMS > Auto Doc Numbering (dms_reference/auto_doc_numbering.php) holds one rule per document classification of the project: an ordered list of prefixes, the separator (hyphen or underscore), the digit count and the sequence start. The prefixes are Project Code, Classification, Company, free text, and Area Code, Discipline, Document Type and Document Category when their enable_* flag is on. Company is the short name of the project owner, falling back to the project company. A rule row is inserted when the admin saves; a new project has none until then.
2. Library Index Reference > Select Root Internal Doc marks one folder of the project as the internal root (ts_doc_auto_numbering_root) and shows an INTERNAL badge on it. The project root folder itself is refused.
3. Document Library > New > Auto Numbering locks Document Number, lists only the classifications that have a rule, and builds the number from the chosen references, e.g. AAL04-TST-ENG-001. cmd=checkLastAutoNumberingCounter supplies the next sequence for that structure. On save, getAutoDocNumberingRoot creates a subfolder named after the classification under the internal root (once) and files the document there, and act=saveAutoNumberingStruct bumps the counter; a clash answers exists and the form regenerates the number.

The Tomori original (INA12-54) also offers Well Site, Division, Element and Sub Category; master and its forks do not.

Database tables affected

Table	Operation	By
ts_documents	insert / update / delete	New, Copy, Edit, Delete, Unpublish
ts_map_documents_library	insert / delete	New, Edit, Delete, folder change (act=selectLibIdx)
ts_map_doc_system	insert / delete	New, Edit, Delete
ts_file_explorer, ts_map_doc_file	insert	Upload
ts_map_email_sender, ts_map_email_content, ts_map_email_more_attach	insert / update / delete	Send dialog
ts_doc_auto_numbering_counter	insert / update	auto numbering on save
ts_doc_library, ts_doc_library_priv, ts_map_doc_lib_project	select	tree and access
ts_downloadfile_link	update	vendor download logging

Gotchas

• Two uploads with the same name. The library's Upload attaches files to a registered document. The Documents Master Upload registers and routes. New developers mix them up.
• A document you cannot see is usually a folder privilege. Check ts_doc_library_priv for the resource group before reading code.
• Zend ACL leftovers. documents_privilege.inc.php (Zend_Acl over iw_mysql_query) is commented out in documents.php, but member_archive.inc.php and member_archive_search.inc.php still include it. Those archive screens would fatal in the forks where the legacy helper throws.
• Deletes are not transactional. act=deletedata runs several statements in sequence.
• documents.inc.php still calls iw_mysql_query() in its older helpers (folder lookups by code). Any screen that reaches those helpers dies in four of the five forks. Prefer the $pdo versions next to them.
• Master and Jadestone save no classification for an auto-numbered document. With Auto Numbering on, the form disables val_doc_class and posts the chosen class as val_classification, which document_handler_post.php never reads, so doc_classification stays empty. Prima Energy resolves the id to its code and saves it (INA30-2); the other forks still have the gap.

Instance differences

Checked on 2026-09-06.

Instance	Difference
Medco	Has an Archive feature: archivetree_submit_act and archive_form_close_act in the template, and the archive privilege action type.
Timas	No retention column in the template, no enable_doclib_retention, no auto document numbering, no library_folder_access_default. Older grid: no export_excel.php and no json/ column config. Its send-email files differ from master.
JOTRE	Unpublish and the legacy send-link path work, because iw_mysql_query() still runs there.
Jadestone	Matches master on every item checked.
Prima Energy	Auto document numbering since 2026-09-13 (INA30-2, on development and staging; main at the next release), ported from master. enable_auto_doc_numbering is seeded to 0 by migration 20260913030000, so the feature stays off after deploy; the chosen classification is saved to doc_classification. No Well Site. Checked in the browser on the local vhost.

Related

• Upload: registers PDFs and files them into Deliverables.
• Sign Off: publishes the reviewed copy into the library.
• Auto Folder Creation: the per-project folder tree the publish step builds.
• Reporting: the Documents Library report.
